Explore our OEM/ODM exporter selections engineered for industrial automation, telecom infrastructure, medical equipment, and LED lighting displays.
An authoritative technical analysis of manufacturing capabilities, standard topologies, and quality validation metrics for international B2B procurement managers.
China's switch-mode power supply (SMPS) export sector has evolved from low-cost assembly to advanced semiconductor integration. Leveraging mature localized supply chains for planar transformers, MOSFETs, and high-frequency inductors, top China exporters offer unmatched scale and speed-to-market.
Leading Chinese OEM/ODM exporters incorporate soft-switching zero-voltage switching (ZVS), active power factor correction (PFC), and LLC resonant converter topologies to achieve power conversion efficiencies exceeding 94% to 96% across wide operational load ranges.
Qualified exporters adhere strictly to international safety standards, including IEC/EN/UL 62368-1 for ICT equipment, EN 50155 for railway systems, and ISO 26262 / ASIL-D for automotive e-Mobility platforms, backed by comprehensive CE, RoHS, and FCC certifications.
From standard board-mounted DC-DC brick modules to heavy-duty industrial switching converters and e-Mobility power units, field-proven reliability underpins every design.
Offering complete isolated DC-DC converter families from sub-15W to over 1000W+. Packages span micro-power modules, 1/32nd, 1/16th, 1/8th, quarter, half, and full brick footprints compatible with industry DOSA standards for seamless design integration.
Engineered to withstand severe line fluctuations, converters accommodate standard inputs across 9–36V, 9–75V, 18–75V, 36–75V, 16–160V, 180–400V, and high-voltage automotive ranges up to 400–650V with reinforced isolation up to 2250VDC.
Every platform undergoes documented Highly Accelerated Life Testing (HALT) and High Accelerated Stress Screening (HASS). 100% automated test coverage ensures zero-defect shipments and industry-leading Mean Time Between Failures (MTBF).
Providing rapid transient response and micro-voltage regulation (2.5V to 60V wide input range) for modern FPGA, ASIC, and high-performance network processor power rails with digital PMBus control.
Heavy commercial electric vehicles, e-buses, and off-highway machinery benefit from liquid-, air-, and conduction-cooled 1kW to 5kW DC-DC modules and On-Board Chargers (OBC) with IP67-rated ruggedized enclosures.
Direct technical support from experienced power application engineers allows rapid modifications to standard topologies, connector pinouts, thermal baseplates, and mechanical housing specs with fast turnaround.
Key technological transitions shaping procurement strategies for B2B buyers, OEM system integrators, and electronic design engineers worldwide.
Gallium Nitride (GaN) and Silicon Carbide (SiC) power devices are rapidly replacing silicon MOSFETs. China power exporters are leveraging GaN/SiC to double power density, reduce switching losses, and enable ultra-compact open-frame and enclosed switching power supplies that operate at higher temperatures without thermal degradation.
Driven by datacenter energy regulations, telecom 5G expansions, and ESG compliance, global buyers prioritize switching power supplies with >94% conversion efficiency. High-power-density architecture reduces thermal dissipation budgets and minimizes enclosure footprints in crowded server racks and industrial control cabinets.
Modern SMPS units are moving from purely analog feedback loops to micro-controller-driven digital power architectures. Features such as PMBus, CANbus, and I2C telemetry enable system administrators to monitor real-time output current, ambient thermal derating, and predictive maintenance metrics remotely.
Compare technical parameters across major product classifications to select the optimal power converter for your system requirements.
| Power Category | Typical Input Range | Output Power Class | Peak Efficiency | Cooling Mechanism | Primary Target Applications |
|---|---|---|---|---|---|
| Open Frame AC-DC SMPS | 90 – 264VAC Universal | 50W – 650W | 88% – 94% | Convection / Forced Air | Medical Devices, Telecom, Audio/Video, Industrial Automation |
| Enclosed Metal Case Driver | 110V / 220V Selectable | 60W – 400W+ | 85% – 90% | Perforated Convection | LED Screen Walls, CCTV Security, Signage, Cabinet Automation |
| Board-Mounted Isolated DC-DC | 9V–75V, 16-160V, 180-400V | 15W – 1000W+ | 91% – 96% | Conduction / Heatsink Baseplate | Telecom Base Stations, Datacom Servers, Railway Rolling Stock |
| Non-Isolated POL Modules | 2.5V – 60V Wide DC Input | Up to 100A Current | 92% – 97% | Direct Airflow | FPGA Board Rails, GPU Core Power, High-Speed Processors |
| e-Mobility Automotive Converters | 200V – 650V High DC Input | 1kW – 5kW+ Continuous | 94% – 96% | Liquid Cooled / Sealed IP67 | Electric Trucks, Commercial Buses, Off-Highway Machinery |

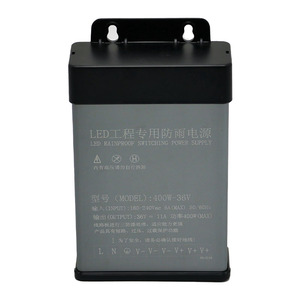

| IP65 Outdoor Waterproof SMPS | 100 – 240VAC Universal | 70W – 300W | 87% – 91% | Sealed Aluminum Encapsulation | Outdoor Architectural Lighting, Harsh Environment Sensors |
Detailed answers addressing critical technical, compliance, and sourcing questions during the supplier selection process.
Leading exporters are distinguished by comprehensive quality control systems (ISO 9001, IATF 16949 for automotive), full safety agency compliance (UL, CE, EN 62368-1, CB certificates), automated SMT production, rigorous burn-in screening (HALT/HASS), and dedicated in-house R&D teams capable of supporting custom electrical and mechanical design requirements.
Choose Open Frame when integrating power modules inside enclosed equipment with restricted space and available airflow. Select Metal Case (Perforated) for standalone industrial control boxes or display drivers requiring basic touch safety and cost efficiency. Choose Encapsulated (IP65/IP67) for outdoor, high-humidity, dust-heavy, or high-vibration applications such as railway transportation and outdoor LED walls.
Standard isolated DC-DC brick converters support wide input ratios including 2:1 and 4:1 ranges. Common bands include 9-36V, 9-75V, 18-36V, 18-75V, 36-75V for industrial and telecom systems; 16-160V, 34-160V, 66-160V for railway rolling stock (EN 50155); and 180-400V or 400-650V for high-voltage DC microgrids and electric vehicle power platforms.
Active PFC ensures that the current waveform closely matches the line voltage waveform, maximizing true power efficiency and maintaining a power factor (PF) typically above 0.95 to 0.99. This is mandatory for commercial power units above 75W under European EN 61000-3-2 regulations to reduce harmonic distortion on the public AC power grid.
Yes. Top manufacturers provide full custom engineering services. This includes modified output voltage rails, custom pinouts, specialized thermal baseplates, conformal coating for harsh environments, custom CAN/PMBus firmware, and customized mechanical enclosures to drop directly into proprietary OEM architectures.
All switch-mode power supplies experience efficiency changes and thermal stress at elevated ambient temperatures. Thermal derating curves indicate maximum allowable output power at specific operating temperatures (e.g., full power up to 50°C, linear derating to 50% power at 70°C). System engineers must factor in ambient thermal headroom, heatsink mounting, and available linear feet per minute (LFM) of airflow.
Partner with China's leading switching supply exporter. Access our full engineering datasheets, MTBF reports, sample units, and wholesale OEM quotation pricing for your next power project.
