Explore our export-grade variable frequency drives designed for precision speed control, energy optimization, and continuous heavy-duty motor protection across global industrial automation environments.
Variable Frequency Drives (VFDs) and AC Frequency Converters serve as the cornerstone of industrial motor control, electrical energy conservation, and automated speed regulation. As a premier OEM/ODM manufacturer and global exporter, our engineering platforms integrate advanced IGBT technology, space-vector pulse-width modulation (SVPWM), and robust sensorless vector control (SVC) algorithms.
Technical Insight: By shifting motor speed control from mechanical throttling to precise electrical frequency modulation, our industrial VFD converters reduce system energy consumption by up to 30% to 50% in centrifugal pump, HVAC, fan, and air compressor applications while extending mechanical motor life through controlled soft-starting.
| Series & Specification | Input Voltage Topology | Control Paradigm | Overload Capacity | Primary Industrial Target |
|---|---|---|---|---|

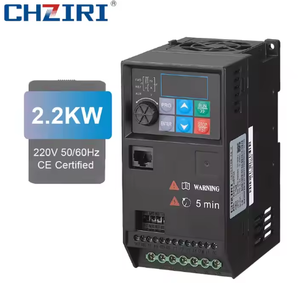

| Compact Micro VFD (0.4kW - 2.2kW) | 1-Phase 110V/220V AC (±15%) | V/f Control, Space Vector PWM | 150% for 60s, 180% for 3s | Packaging, conveyors, small machine tools |

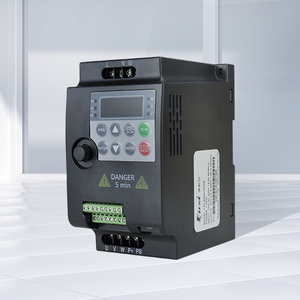

| General Purpose 630 Series (0.75kW - 11kW) | 1-Phase 220V / 3-Phase 380V AC | Sensorless Vector Control (SVC) | 150% for 60s, 200% for 1s | Textile machinery, cutting machines, pumps |
| Heavy-Duty Vector Drive (15kW - 90kW) | 3-Phase 380V/440V/480V AC | Closed-Loop Vector (FVC) + SVC | 180% for 60s, 200% instantaneous | Mining crushers, extruders, cranes, hoists |

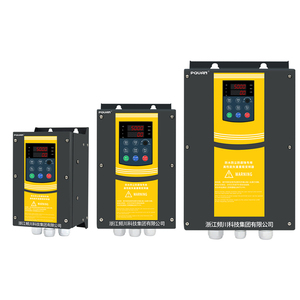

| Rugged IP65 Decentralized Drive | 3-Phase 380V - 460V AC | Advanced Sensorless Vector | 150% for 60s | Washdown environments, outdoor pumps, food processing |
Leveraging deep industrial power electronics expertise, our OEM/ODM facilities offer complete lifecycle engineering from PCB layout, firmware control customization, and thermal dissipation design to large-scale mass production.
We source top-tier semiconductor IGBT switches paired with automated gate drivers, ensuring ultra-low thermal dissipation, high switching frequencies, and enhanced immunity to electrical noise and voltage spikes.
Our in-house R&D team customizes motor control code (V/f curve tuning, torque compensation, multi-speed macros) and implements native industrial protocols including RS485 Modbus-RTU, CANopen, and EtherCAT.
Every single frequency converter undergoes 100% full-load dynamic testing, high-temperature burn-in screening, and continuous thermal cycle testing under realistic motor load profiles prior to packaging.
PCBs feature automated triple-proof conformal coating (anti-salt spray, moisture-proof, dust-resistant). High-protection models (IP65) prevent ingress in hash chemical, agricultural, and washdown environments.
We provide tailored chassis design, custom front panel HMI branding, multi-language firmware, specialized heat-sink mounting, and localized voltage tuning (e.g., 110V single phase to 220V 3-phase boost conversion).
With standardized component sourcing, strategic inventory buffers, and full material traceability, we guarantee predictable OEM lead times, compliance with international customs standards, and export packaging reliability.
As global manufacturing shifts toward Industry 4.0, hyper-efficiency, and carbon neutralization, frequency converters are undergoing rapid technological transformations across power electronics, control algorithms, and smart diagnostics.
The transition from traditional Silicon-based IGBTs to Silicon Carbide (SiC) and Gallium Nitride (GaN) power transistors represents a monumental step forward for industrial variable frequency drives.
Modern smart frequency converters are evolving beyond basic speed regulation into intelligent sensing nodes that monitor motor health in real time.
With worldwide mandates enforcing IE4 and IE5 motor efficiency compliance, VFD manufacturers are redesigning inverter output waveforms and regenerative braking capabilities.
Industrial applications increasingly demand drive placement directly on or adjacent to the motor, eliminating long shielded cables and centralized cabinet footprints.
Procurement directors and system integrators face evolving supply chain requirements. Sourcing strategy is moving from basic unit-cost evaluation toward comprehensive Total Cost of Ownership (TCO), supplier manufacturing agility, and modular design scalability.
Global buyers prioritize manufacturers offering modular VFD architectures—where power units, control cards, and I/O expansion modules are interchangeable. This drastically lowers spare part inventory holding costs across multi-country operations.
Exporting machinery worldwide requires frequency converters capable of seamless operation across wide input voltage bands (e.g., 200V-480V, 50Hz/60Hz) holding unified CE, UL, RoHS, and EAC certifications on a single product reference.
Machinery OEMs increasingly request custom macro firmware tailored to specific equipment (e.g., constant pressure water supply, air compressor load/unload logic, CNC spindle orientation), locking in aftermarket service value and equipment differentiation.
Planning a custom OEM/ODM frequency converter project or looking for factory-direct sourcing? Connect with our engineering sales team today.
In-depth answers to critical technical, engineering, and procurement questions commonly raised by system integrators, electrical engineers, and international buyers.

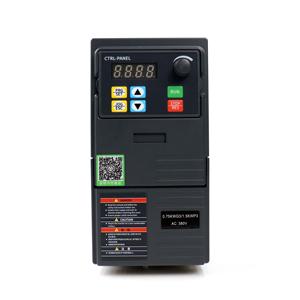

A step-up boost frequency converter utilizes an internal DC-bus voltage multiplier circuit or step-up transformer topology to convert single-phase 220V AC input into a high-voltage DC link (approx. 530V-580V DC), which is then modulated via 6-step IGBT inverter bridges into symmetrical 3-phase 380V AC output. While ideal for operating 3-phase industrial motors in residential or rural locations lacking 3-phase grid power, current draw on the input single-phase line is roughly 1.732 times higher than a standard 3-phase supply. Consequently, input cabling, circuit breakers, and thermal heat sinking must be sized appropriately.
V/f control maintains a linear ratio between voltage and frequency supplied to the motor. It is simple, handles multi-motor parallel operation well, but suffers from lower torque output at low speeds (<5 Hz). Sensorless Vector Control (SVC) uses mathematical models of the motor parameters to independently decouple and control the magnetizing current and torque-producing current vectors. SVC delivers high starting torque (up to 180%-200% at 0.5 Hz), precise speed regulation (±0.5%), and dynamic response under fluctuating load conditions without requiring an external shaft encoder.
Our factory provides comprehensive OEM/ODM customization across multiple engineering levels: 1) Brand Identification: Custom colors, front panel silk-screen logos, packaging boxes, and digital HMI boot screens. 2) Hardware Modifications: Customized metal chassis dimensions, removable keyboard panels, specialized terminal blocks, external heatsinks, and built-in braking units or EMC filters. 3) Software/Firmware: Pre-loaded motor parameters, specialized application macros (e.g., solar pump MPPT logic, textile traverse control), and custom RS485 communication register maps.
Standard industrial frequency converters are rated for nominal operation up to 40°C (104°F) ambient temperature. Operating above this threshold reduces the heat dissipation capability of the internal heat sink and forced-air cooling fans. Typically, for ambient temperatures between 40°C and 50°C, the drive continuous output current must be derated by 1.5% to 2% for every 1°C increase above 40°C. For installations exceeding 50°C, high-temperature upgraded components or liquid-cooled enclosure solutions are recommended.
Switching action of IGBTs creates high-frequency pulse trains that can cause electromagnetic radiation and power line harmonics. Our frequency converters offer built-in or optional Class C2/C3 EMC filters to suppress conducted radio-frequency interference. To minimize line harmonics (THD), we supply optional DC chokes or AC input reactors. For severe harmonic constraints (such as in hospitals or cleanrooms), passive or active harmonic filters can be integrated into the overall cabinet packaging.
Our ISO9001-certified manufacturing facility implements a rigid 5-stage quality assurance protocol: 1) Incoming Quality Control (IQC) testing of raw semiconductors, capacitors, and PCBs. 2) Automated Surface Mount Technology (SMT) with 3D Automated Optical Inspection (AOI). 3) 100% conformal coating inspection under UV light. 4) Environmental Stress Screening (ESS), including full-load dynamic burn-in at 50°C for 24-48 hours. 5) Final Outgoing Quality Control (OQC) verifying voltage balance, over-current trip points, and communication integrity.
Whether you require standard off-the-shelf VFD drives, custom firmware development, or high-volume private label manufacturing, our power electronics engineers are ready to support your technical specifications and business targets.
