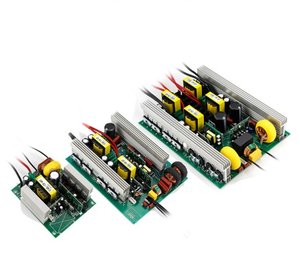

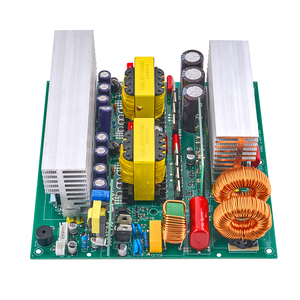

Explore our engineering-grade pure sine wave inverter circuit boards, automotive-qualified DC-AC modules, and scalable off-grid driver assemblies designed for extreme efficiency and rugged reliability.
Modern power electronics demand an uncompromising shift toward higher power density, advanced thermal management, and ultra-low Total Harmonic Distortion (THD). As a premier global Custom OEM Inverter Module Supplier & Exporter, our engineering mandate is centered on eliminating conversion losses while maximizing operational reliability in extreme operating environments—spanning commercial electric vehicles, telecommunications infrastructure, industrial automation, and off-grid renewable energy storage platforms.
Industrial motors, medical equipment, automotive accessories, and precision electronics require a clean sinusoidal AC waveform. Modified sine wave inverters generate high harmonic spikes that cause thermal stress, audible acoustic noise, and electromagnetic interference (EMI) in sensitive loads. Our OEM inverter circuit board platforms incorporate multi-stage LC/LCL filtering and active feedback control loops to maintain THD below 2.5% under variable non-linear load conditions.
By leveraging high-speed microcontroller units (MCUs) combined with hardware-level cycle-by-cycle current limiting, our driver boards automatically compensate for rapid step-load shifts, preventing voltage drops during heavy inductive motor start-ups.
| Topology Architecture | Typical Efficiency | Power Density | Primary Target Applications | Thermal Strategy |
|---|---|---|---|---|
| High-Frequency Pure Sine Wave (SiC MOSFET) | 95.5% - 97.2% | >3.5 kW/L | EV On-board Power, Energy Storage Systems (ESS), Solar Micro-Inverters | Liquid / Cold Plate Cooled |

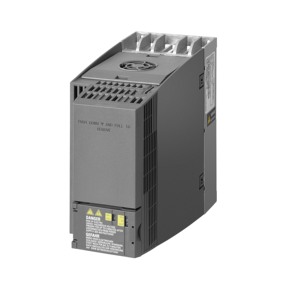

| Isolated DC-DC + H-Bridge Inverter (IGBT Module) | 91.0% - 94.0% | 1.8 kW/L | Industrial Variable Frequency Drives (VFD), Heavy Machinery | Forced Air + Heatsink |
| Bidirectional OBC & DCDC 2-in-1 Assembly | 94.5% - 96.0% | >2.8 kW/L | Commercial Transportation EVs, Construction Equipment, E-Buses | Integrated IP67 Liquid Cooling |

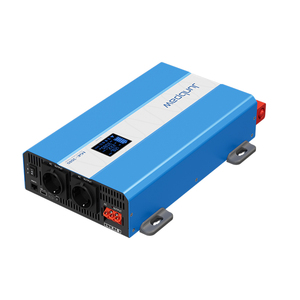

| Low-Voltage High-Current Driver Board (FET Array) | 89.0% - 92.5% | 1.2 kW/L | Automotive Portable Inverters (12V/24V DC to 110V/230V AC) | Conduction / Air Cooled |
As system integrators and Tier-1 OEMs redesign power distribution architectures, strategic sourcing decisions are governed by four major industry shifts.
Global electric vehicle and heavy transport OEM procurement is rapidly pivoting from 400V battery systems to 800V ultra-high-voltage architectures. Inverter modules accepting 200V–900V DC wide input ranges enable faster charging speeds, smaller cable cross-sections, and reduced system copper weight.
Modern procurement requirements mandate bi-directional energy flow (Vehicle-to-Load V2L, Vehicle-to-Grid V2G). Inverter assemblies must seamlessly switch between AC-to-DC charging modes and DC-to-AC power exporting without mechanical relay latency.
Analogue control circuits are being systematically replaced by DSP-driven digital control platforms with native CAN 2.0B, J1939, or SMBus interfaces. Real-time telemetry monitoring of MOSFET junction temperatures, voltage rails, and fault diagnostics is now a non-negotiable sourcing criterion.
Thermal dissipation remains the principal ceiling for power density. Traditional open-frame inverters suffer from thermal derating in harsh environments. Modern custom OEM inverter modules utilize vacuum-encapsulated thermoconductive potting compounds combined with direct-to-plate liquid cooling jackets or pin-fin aluminum heatsinks.
Our IP67 and IP68 waterproof automotive-grade inverter modules operate continuously under severe vibration, high atmospheric humidity, and ambient temperature extremes from -40°C to +85°C without sacrificing power delivery performance.
Building on decades of specialized power conversion technology, our manufacturing infrastructure is engineered to deliver zero-defect OEM and ODM products to global enterprise clients. From standard board-mounted DC-DC brick converters to full-custom automotive inverter modules, every unit is backed by robust design verification testing (DVT) and complete material traceability.
100% automated optical inspection (AOI), high-temperature burn-in screening under full dynamic load, and Highly Accelerated Life Testing (HALT/HASS) ensure field reliability meeting standard MTBF projections exceeding 500,000 operational hours.
Full support for industry-standard DOSA footprints (1/32nd, 1/16th, 1/8th, Quarter, Half, and Full Brick) alongside full-custom mechanical housings tailored to proprietary OEM chassis designs.
Engineered to comply with stringent international regulatory frameworks including UL 62368-1, IEC/EN 60950, IATF 16949 automotive quality systems, ISO 9001 management, RoHS, and CE certifications.
Direct technical answers addressing customization capability, lead times, thermal margins, and compliance standards.
We provide full turnkey OEM/ODM engineering customization. This includes custom input/output voltage matching (e.g., 12V/24V/48V/96V/400V/800V DC to 110V/120V/220V/230V/240V AC), specialized form factor PCB layouts, custom heatsink geometry, IP67 enclosure design, firmware modifications for CAN/J1939 communication, and custom wiring harness/connector integration.
Standard OEM modules have flexible minimum order quantities starting from 50 to 100 units for evaluation and initial production runs. Prototype engineering samples for custom NRE projects are typically delivered within 3 to 5 weeks, while full-scale mass production orders carry standard lead times of 6 to 8 weeks depending on component sourcing specifications.
Our inverter module architecture utilizes high-efficiency switching topologies (>94-97% efficiency) to minimize thermal power dissipation. Thermal management options include heavy copper PCBs (up to 4oz copper depth), integrated aluminum copper-clad baseplates for conduction cooling, forced-air cooling channels, and sealed aluminum liquid-cooled jackets for high-power automotive applications.

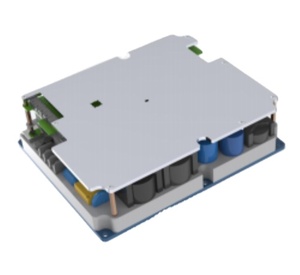

Yes. Our advanced automotive inverter modules (such as our 3.3kW OBC / 6kW Inverter series) are designed under IATF 16949 quality management systems and engineered to comply with CISPR 25 EMC standards, ISO 11452 road vehicle immunity testing, and UL 62368-1 safety norms. Detailed compliance documentation and test reports are supplied alongside prototype evaluation units.

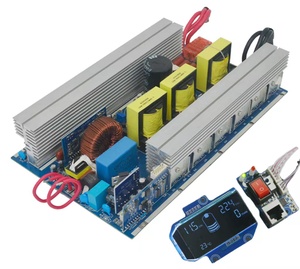

Absolutly. Our off-grid pure sine wave inverter driver board power modules feature a 200% peak surge power capability for up to 3 seconds. Integrated digital signal processors dynamically control output current limits to start heavy inductive loads like air conditioning compressors, power tools, and water pumps without triggering latch-off protection.
