High-reliability printed circuit board assemblies (PCBA), open-frame power supplies, and heavy-copper power distribution platforms engineered for global industrial and commercial electronics buyers.
Why premier global OEMs, system integrators, and electronics engineering design houses specify our power board platforms.
Utilizing up to 6oz copper layers, aluminum metal-core PCBs (MCPCB), and thermal conductivities up to 2.0 W/m.K to eliminate thermal bottlenecks in high-current industrial power boards.
Integrated Power Factor Correction circuits meeting EN61000-3-2 standards. Supports universal AC inputs (85V-264V) and extreme DC ranges (9V-75V, 180V-400V, 400V-650V).
100% Automated Optical Inspection (AOI), X-ray testing for BGA components, and HALT/HASS stress screening guarantee extended MTBF across harsh deployment environments.
As modern electronic devices demand higher energy density, compact mechanical form factors, and stricter energy efficiency standard compliance (such as EU Ecodesign, DoE Level VI, and 80 PLUS Titanium), selecting the right China wholesale power board factory and OEM exporter has become a vital strategic imperative for global procurement executives and senior hardware design engineers. Power supply board assemblies serve as the heart of modern industrial automation, telecom infrastructure, electric vehicles (EV), and high-reliability consumer products. This technical guide examines the technological evolution, structural procurement criteria, manufacturing validation processes, and market trends shaping the international power supply supply chain.
Key Industry Takeaway: Power supply failure remains the primary cause of hardware downtime in industrial electronic equipment. Partnering with ISO9001-certified OEM power board manufacturers capable of high-thermal FR-4 and heavy-copper layout execution reduces warranty costs by up to 42% over long-term device lifecycles.
The global power conversion hardware industry is experiencing an unprecedented shift toward Wide Bandgap (WBG) semiconductors, automated surface mount technology (SMT), and high-density packaging architectures. Chinese OEM factories and specialized exporters are at the forefront of implementing these high-efficiency advancements.
Gallium Nitride (GaN) and Silicon Carbide (SiC) FETs have largely superseded legacy Silicon MOSFETs in high-frequency power boards. By dramatically lowering switching losses and output capacitance, GaN devices allow switching frequencies to exceed 500 kHz to 2 MHz. This permits power board designers to scale down magnetic components (transformers and inductors) by up to 60%, yielding ultra-compact AC-DC and DC-DC power converter modules without compromising efficiency.
Modern power distribution boards, motor drives, and smart inverter sub-assemblies often handle continuous current loads ranging from 10A up to 100A per rail. Standard 1oz or 2oz copper PCB traces generate excessive I²R resistive heating under these loads. Leading export factories now utilize 4oz to 6oz heavy copper circuit boards coupled with dielectric materials featuring thermal conductivity ratings up to 2.0 W/m.K. Furthermore, ENIG (Electroless Nickel Immersion Gold) and OSP (Organic Solderability Preservative) surface finishes ensure superior planar soldering for power components while mitigating oxidation risks in humid operational environments.
To streamline system board design, board-mounted isolated DC-DC converters have coalesced around industry-standard brick footprints. Chinese power module exporters offer fully compliant pinouts across standard form factors:
When selecting custom or standard power supply PCB assembly platforms, engineering teams must evaluate substrate materials against operational temperature requirements and electrical stress parameters.
| Substrate / PCB Type | Copper Weight | Thermal Conductivity | Max AC/DC Input Voltage | Target Applications |
|---|---|---|---|---|

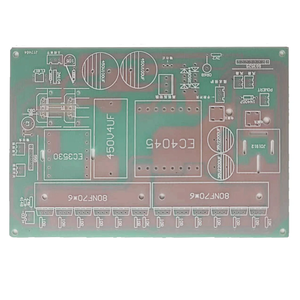

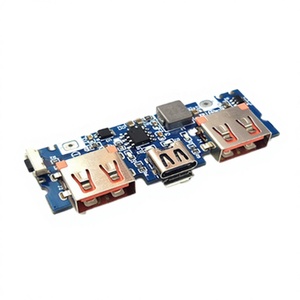

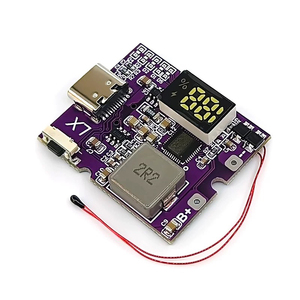

| Standard Single/Double Sided FR-4 | 1oz - 2oz | 0.3 - 0.5 W/m.K | 5V - 48V DC | Consumer Charger, USB Power Banks, LED Drivers |

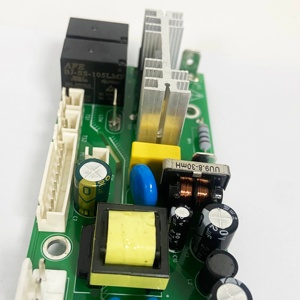

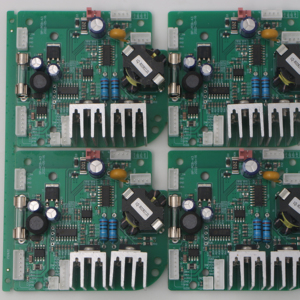

| High TG FR-4 Multi-Layer (4-8 Layer) | 2oz - 3oz | 0.8 - 1.2 W/m.K | 85V - 264V AC / 400V DC | Switching Power Supplies, Industrial Automation, Smart Inverters |

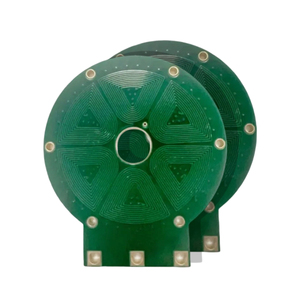

| Heavy Copper Industrial PCB (8-12 Layer) | 4oz - 6oz | 1.5 - 2.0 W/m.K | 1000V AC / 650V DC | Motor Controllers, Heavy Machinery, EV Powertrain Converters |
| Metal Core PCB (MCPCB Aluminum Base) | 2oz - 4oz | 2.0 - 5.0 W/m.K | 300V - 600V DC | Automotive Lighting, High-Wattage Density Power Modules |
Direct sourcing from OEM power board factories in China requires a rigorous vendor auditing framework to ensure product performance, regulatory compliance, and supply chain continuity. Overseas buyers should evaluate wholesale exporters against four critical procurement pillars:
A reliable supplier must maintain documented quality systems, including ISO9001, ISO14001, and IATF16949 (for automotive sector applications). Beyond basic visual checks, inspect whether the manufacturing facility conducts 100% automated optical inspection (AOI) post-SMT reflow, X-ray inspection for multi-layer voiding, and 100% automated functional final testing (ATE). Accelerated environmental stress screening—such as High Accelerated Life Testing (HALT) and High Accelerated Stress Screening (HASS)—is essential for high-reliability power modules intended for 24/7 continuous operation.
Exported power supply board assemblies must comply with destination market safety and electromagnetic compatibility (EMC) mandates. Ensure the factory provides certified test reports for UL 62368-1 (Audio/Video and IT equipment safety), CE, FCC, RoHS, and REACH. In switching power boards, proper EMI filtering (including input X/Y capacitors, common-mode chokes, and optimized PCB loop ground planes) is vital to pass CISPR 32 / EN 55032 Class B conducted and radiated emission limits.
Power board longevity heavily depends on the quality of active switches, switching control ICs, and electrolytic or ceramic output capacitors. Premium Chinese exporters enforce strict component vendor qualification, stocking original components from top-tier semiconductor suppliers (such as Texas Instruments, STMicroelectronics, Infineon, and ON Semiconductor) and premium capacitor brands (e.g., Nichicon, Rubycon, TDK, Murata). Traceability at the batch level guarantees rapid root-cause isolation in the event of field anomalies.
As a leading specialized exporter of high-efficiency power modules and custom PCBA boards, NetPower Technologies combines technical engineering expertise with scalable China-based manufacturing infrastructure. Our manufacturing facilities offer end-to-end support for custom power converter development:
Contact our engineering sales team to request technical datasheets, request OEM sample evaluation units, or discuss custom power supply circuit board assembly specifications.
